Amino superparamagnetic microparticles (ASMPs) embody an intriguing nanomaterial category that integrates superparamagnetic particles' magnetic properties with surface amino group modifications' functional flexibility. The functional versatility of amino superparamagnetic microparticles enables them to find applications across multiple sectors, especially in biotechnology, environmental technology, and energy fields. Our article examines the essential properties of ASMPs together with their uses and how amino functionalization boosts their performance.
What are amino superparamagnetic microparticles?
ASMPs consist of microparticles that demonstrate superparamagnetic properties and feature functional amino (-NH2) groups on their exterior surfaces. Superparamagnetism represents a distinctive magnetic characteristic that exists in nanoparticles under 100 nm in size because they exhibit no permanent magnetic fields yet react to magnetic fields from external sources. When an external magnetic field surrounds these particles, they become magnetized yet they lose their magnetization when the field disappears.
Fig.1 (A) Superparamagnetic iron oxide nanoparticles (SPION). (B) Typical capping agent used to stabilize SPION[1].
The primary characteristic of these particles includes surface amino functionalization. The addition of amino groups to particle surfaces enables significant changes to their characteristics, which strengthens their interactions with biomolecules, thereby making them suitable for biomedical purposes. The microparticle size range of 10 to 1000 micrometers enables these particles to function in applications where nanoparticles are unsuitable, such as cell separation and microfluidic biosensing.
How does superparamagnetism enhance the properties of microparticles?
The fundamental magnetic property of ASMPs is their superparamagnetic behavior. Superparamagnetic materials are defined by their lack of residual magnetization once the external magnetic field is removed, which sets them apart from traditional ferroelectric materials. Superparamagnetic particles remain dispersed without sticking to one another when there is no magnetic field present, which makes them highly useful for magnetic separation or manipulation tasks in complex settings.
Superparamagnetic particles demonstrate fast magnetization and demagnetization cycles, which enhance control and versatility for biological applications, including magnetic resonance imaging (MRI) and targeted drug delivery. External magnetic fields allow for rapid manipulation of particles to achieve precise control over biological or chemical materials.
Fig.2 Superparamagnetic versus ferromagnetic particles in (A) the absence and (B) presence of an external magnetic field. When magnetic field is turned off (C), magnetic moments of superparamagnetic particles randomize and lack a remnant magnetization[2].
What effects does amino functionalization have on superparamagnetic microparticle performance?
ASMPs functionalized with amino groups significantly increase their applicability and performance in multiple applications. The particle surface becomes more reactive and hydrophilic due to amino groups, which create strong interactions with biomolecules, thereby enhancing biological application performance.
- Improved Binding Capacity
ASMPs functionalized with amino groups demonstrate enhanced binding capabilities to diverse biomolecules such as proteins, antibodies, and nucleic acids. Covalent bonding with amino groups leads to high-affinity and stable interactions between molecules. ASMPs demonstrate high effectiveness in protein purification and immunoassay applications because of their superior binding capacity.
- Customization Through Surface Modification
ASMP surface amino groups create the foundation for attaching additional functional groups, including carboxyl, epoxy, and thiol groups. The wide range of surface chemistry options enables particle customization for targeted applications. These particles can be engineered to selectively capture certain biomolecules and deliver drugs to specific targets, which allows them to serve multiple purposes in both scientific research and medical practice.
- Increased Biocompatibility
Amino functionalization enhances the biocompatibility of ASMPs. ASMP particles achieve better stability and dispersibility in water-based environments and hence can be used in biological systems without causing harmful immune reactions. Stability and nontoxicity of particles that interact with living tissues are crucial requirements for drug delivery and biosensing applications.
- Enhanced Load Capacity
Particles functionalized with amino groups demonstrate superior loading capacities for biological molecules than their non-functionalized counterparts. Introduction of amino groups creates more surface area for biomolecule attachment, which proves essential for targeted drug delivery and protein purification applications that need high loading capacities to reach therapeutic outcomes.
How are amino superparamagnetic microparticles synthesized?
ASMP synthesis requires both chemical and physical techniques to obtain the targeted particle size together with specific magnetic properties and surface functionalization.

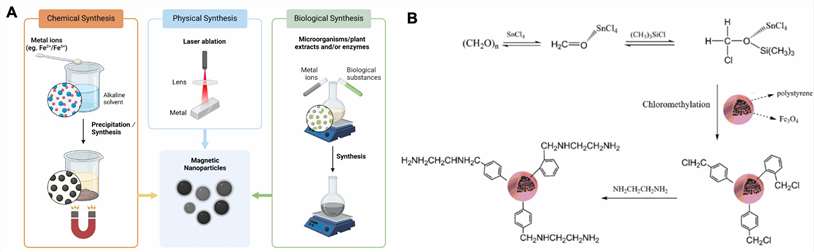

Fig.3 (A) Representation of magnetic nanoparticle synthesis methods[3]. (B) Surface modification of amino groups on magnetic microspheres[4].
- Magnetic Core Synthesis: The primary material used for ASMP core construction typically consists of magnetic substances like iron oxide (Fe3O4) or cobalt ferrite (CoFe2O4). Through precipitation or sol-gel methods, metal salts undergo reduction under specific conditions, which results in the formation of magnetic nanoparticles.
- Surface Functionalization: The particles receive amino group functionalization after the magnetic core formation process. The attachment of amino groups to the particle surface occurs through chemical reactions that utilize silanization agents like aminopropyltriethoxysilane (APTES).
- Size Control: The dimensions of microparticles become adjustable by manipulating reaction conditions such as temperature settings, pH levels, and concentrations of the reactants. Fine-tuning particle size for specific applications becomes possible when parameters are modified.
In what ways are amino superparamagnetic microparticles applied?
ASMPs' distinct characteristics allow them to function across multiple domains in various applications.
Biomedical Applications
ASMPs serve important roles across multiple biomedical fields, including MRI imaging enhancement and targeted drug delivery applications, as well as cell separation technology.These microparticles possess superparamagnetic properties, which make them effective as MRI contrast agents. These particles improve magnetic signals, which leads to better image resolution and clearer visualizations of tissues and organs for diagnostic purposes.
Amino functionalization enables ASMPs to attach to particular biomolecules like antibodies or peptides for targeting specific cells or tissues. Precision delivery methods ensure drugs reach targeted areas while enhancing treatment results and reducing adverse reactions.
ASMPs possess magnetic properties that allow for the separation of target cells from mixed samples by applying a magnetic field to achieve efficient cell isolation. ASMPs are vital for immunoassays because these applications require both high specificity and purity.

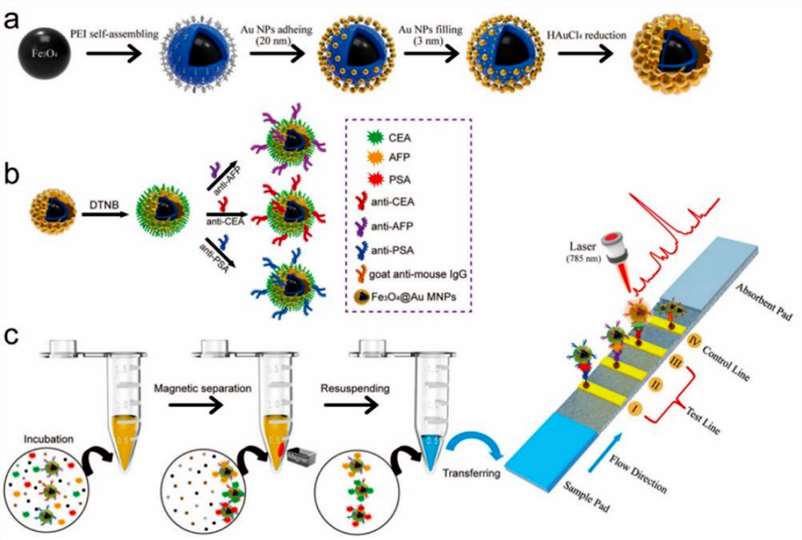

Fig.4 Fe3O4@Au SPMNPs were used as multifunctional surface-enhanced Raman scattering (SERS) tags for simultaneous quantitative analysis of multiple tumor biomarkers[5].
Environmental Technology
ASMPs show promise in environmental technology for tackling pollution and environmental contamination, with particular emphasis on heavy metals. Microparticles with surface amino groups exhibit increased heavy metal ion adsorption capabilities, which results in effective water treatment performance. The ability of these particles to trap lead, mercury, and cadmium from contaminated water helps produce cleaner environments.
ASMPs serve as effective tools in environmental bioremediation processes to remove bioorganic pollutants from both water sources and soil matrices. The magnetic fields allow manipulation of these particles for efficient removal after they have adsorbed pollutants.
Energy Applications
ASMPs demonstrate potential benefits in energy applications through their ability to increase engine efficiency. Research demonstrates that superparamagnetic nanoparticles increase fuel efficiency through their magnetic heat generation capabilities. These particles improve combustion processes through fuel preheating, which results in better engine performance and lower fuel usage.
References
- Vangijzegem T., et al. Superparamagnetic Iron Oxide Nanoparticles (SPION): From Fundamentals to State-of-the-Art Innovative Applications for Cancer Therapy. Pharmaceutics (2023).
- Alcantara D., et al. Magnetic Nanoparticles for Application in Biomedical Sensing. Pharmaceutics (2023).
- Stiufiuc G. F., et al. Magnetic Nanoparticles: Synthesis, Characterization, and Their Use in Biomedical Field. Pharmaceutics (2024).
- Chen J., et al. High Catalytic Activity of Supported Au Nanoparticles Assisted with the Surface Selective Adsorption. Journal of Nanoparticle Research (2019).
- Sezer N., et al. Superparamagnetic Nanoarchitectures: Multimodal Functionalities and Applications. Journal of Magnetism and Magnetic Materials (2021).
