Distillation

Distillation is a vital separation technique that effectively purifies liquids by boiling them and then condensing the vapor back into a pure form.

Distillation is a widely implemented separation process that primarily exploits differences in boiling points to segregate the constituent substances in a liquid mixture. At the core, distillation is a thermally induced physical separation method, wherein a liquid is heated and converted into vapor. This vapor then gets condensed and collected in another container, leaving behind the impurities in the original vessel. The resultant substance, referred to as distillate, is superior in purity to the initial mixture, given that contaminants with different boiling points have been eliminated. This method is further categorized into several types, such as simple distillation, fractional distillation, and steam distillation, based on the nature of the mixture and desired purity.

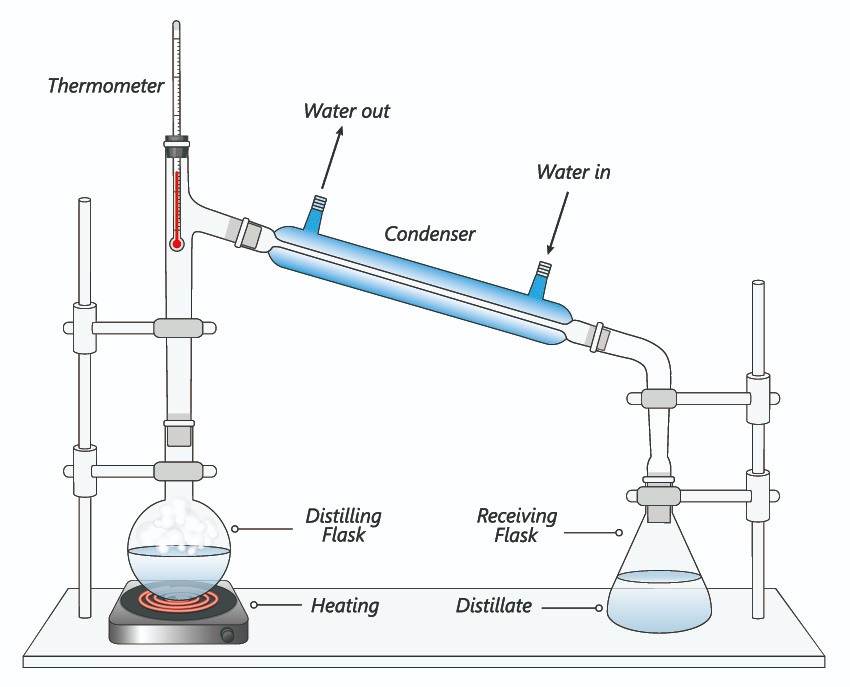

Fig. 1. Image of distillation apparatus.

Types of Distillation

Distillation can be further divided into the following types:

Simple distillation: This is the most basic form of distillation, where a mixture is heated to boiling and the vapors are condensed and collected.
Fractional distillation: This type of distillation is used to separate a mixture of liquids with different boiling points. It involves multiple distillation columns (fractionating columns) to separate the components based on their boiling points.
Steam distillation: This method is used to separate heat-sensitive compounds from a mixture by using steam to carry the volatile components into the condenser.
Vacuum distillation: In this process, distillation is carried out at reduced pressure, which lowers the boiling points of the components and reduces the risk of thermal degradation.
Azeotropic distillation: This method is used to separate azeotropic mixtures (mixtures with constant boiling points) by adding a third component that forms a ternary azeotrope.
Reactive distillation: This method combines distillation and chemical reactions in a single step, allowing for simultaneous separation and conversion of reactants.
Membrane distillation: This is a non-thermal separation process that uses a hydrophobic membrane to separate components based on their vapor pressures.
Cryogenic distillation: This method involves distillation at very low temperatures to separate gases or liquid mixtures with very close boiling points.

Uses of Distillation in Chemical Analysis

In chemical analysis, distillation plays a crucial role in various aspects, including sample preparation, identification of compounds, quantitative analysis, and solvent recovery.

Sample preparation: Distillation prevails as a prominent tool in pre-separating components from a complex mixture before their individual identification and quantification.
Identification of compounds: Distillation assists in determining the boiling points of liquid substances, which is a critical physical property in structural elucidation of organic compounds.
Quantitative analysis: Distillation can also be used for quantitative analysis of samples, as the amount of each component in a mixture can be determined by measuring the volume or mass of the distillate collected.
Solvent recovery: Distillation can recover solvents or other valuable components from mixtures for reuse or further analysis.

Application of Distillation in Deformualtion

In deformulation, distillation serves as a valuable methodology in disbanding the constituent components. Given the differences in the boiling points, distillation allows the substances present in a formulation to evaporate at different temperatures, thereby yielding individual elements and then making it easier to analyze and identify each component. For instance, in the cosmetics industry, the composition of scents, perfumes, or essential oils can be unraveled through distillation. Then, by conjunction with analytical techniques such as gas chromatography or mass spectrometry, each component present in a formulation can be quantified. These information can pave the way for creating similar or improved products. Moreover, the acquired information about the formula may be utilized in enhancing the product's efficacy, adjusting components' ratios, or identifying potential harmful constituents.
